S5750X

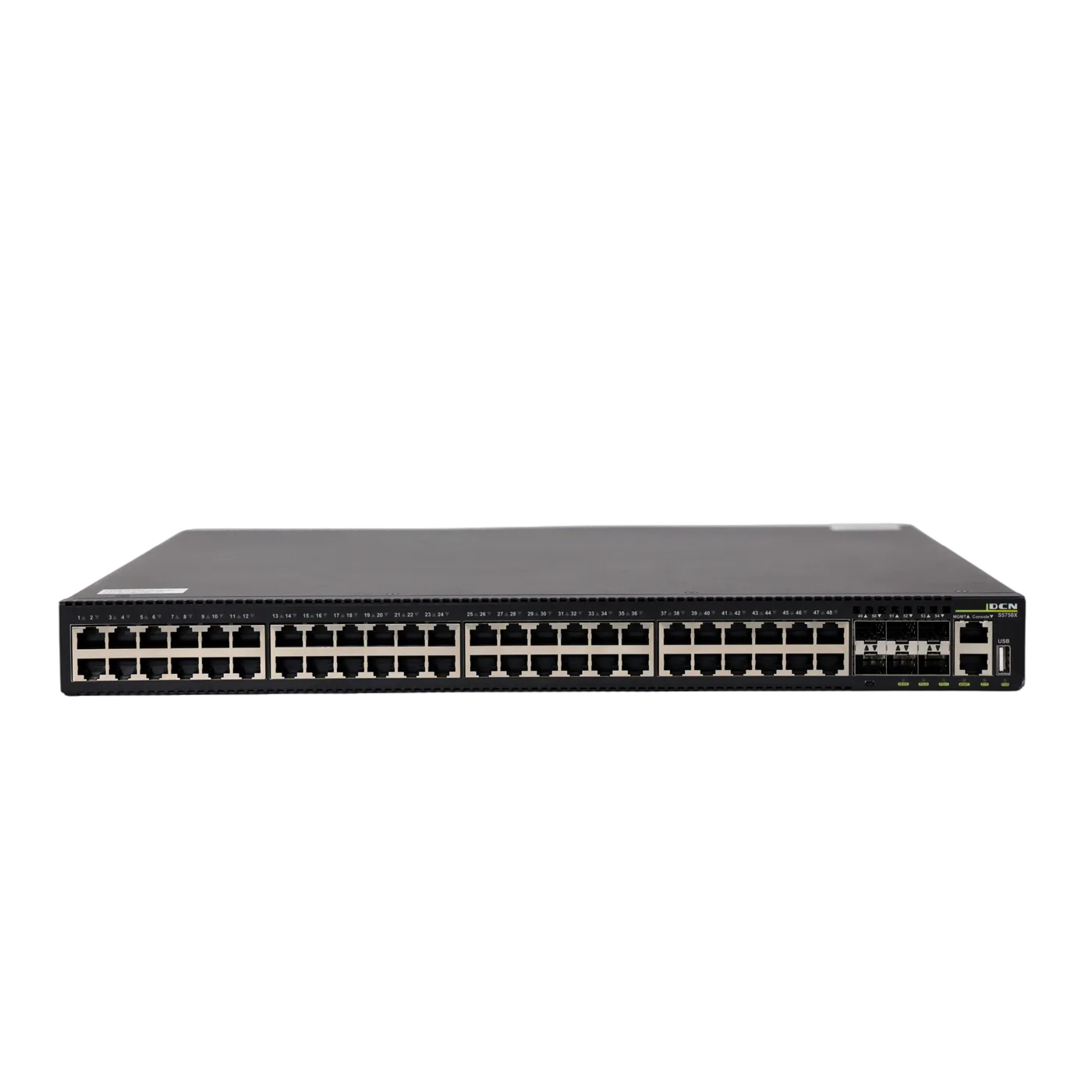

S5750X-48T6X-P-SI
An access PoE switch of the S5750X series with 48 10/100/1000Base-T (RJ45) PoE+ ports and 6 1000/10GBase-X (SFP+) ports. The model is designed for enterprise, ISP and 10Gb structured installations that need higher PoE port density, network security, advanced management, QoS and VSF stacking.
Switching Matrix (Gbps)
216
Throughput (Mpps)
161
PoE Power Budget
740 W
10/100/1000 Base-T (RJ45) Ports
48
Technical specification
Attributes
- Supported PoE Standards
- IEEE 802.3af (PoE), IEEE 802.3at (PoE+)
- Resilience and availability
- DDM, ERPS (ITU-T G.8032), Loop Guard, MRPP, ULPP, Virtual Cable Testing, VRRP
- Diagnostics
- IEEE 802.1D STP/802.1w RSTP/802.1s MSTP, IEEE 802.3ad LACP
- Visibility
- LLDP / LLDP-MED
- L2/L3 Multicast
- anycast RP, IGMP Query, IGMP Snooping Fast Leave (v2/v3), IGMP Snooping (v1/v2/v3), IGMP (v1/v2/v3), IPv6 MLD v1/v2 Snooping, Multicast VLAN, PIM (DM/SM/SSM)
- L3 IPv6
- IPv4/IPv6 Dual Protocol Stack, IPv6 address
- Traffic control
- Flexible QinQ, GVRP, IEEE 802.1Q VLAN, IEEE 802.3x Full duplex & Flow control, IP subnet based VLAN, LACP algorithm (load balance), MAC VLAN, Port-based VLAN, Protocol-based VLAN, Selective QinQ, Super VLAN, 802.1ad Vlan Stacking (QinQ), Voice VLAN
- QoS
- Broadcast Storm Control, IEEE 802.1p Priority Queues per Port, IEEE 802.1p Queuing method, Rate Limiting, Strict Priority, Trusted COS/TOS/IP Precedence/DSCP, Weighted Deficit Round Robin, Weighted Random Early Detection
- Security
- BPDU Guard, BPDU Tunnel, DHCP/DHCPv6 Snooping, IEEE 802.1x port-based/mac-based, IPv4/IPv6 Source Guard, Layer 2 MAC filtering, Port Security, Login authentication by RADIUS and TACACS+, SSH v1/v2, TACACS+ accounting/auditing
- Management
- Cluster, Configuration backup and restore, Console Port RS-232 (RJ45), DHCP Client/Relay/Server, DHCP Option 43/60/82, DHCPv6, DNS Client, GUI (Web), IEEE 802.1ag CFM, IEEE 802.3ah EFM, Multilevel CLI, NTP/SNTP, Port Mirroring per IP/TCP/UDP, RSPAN, sFlow, SNMP, Stack (VSF), Telnet, TFTP/FTP
- Routing
- BGP/BGP4+, OSPF v2/v3, RIP v1/v2, RIPng, Static Route IPv4/IPv6
- MIB
- RFC1066 - TCP/IP-based MIB, RFC1157 - SNMPv2c/v3 MIB, RFC1213, RFC1493 - bridge MIB, RFC1643 - ethernet MIB, RFC1757 - RMON group 1,2,3,9, RFC2233 - SMIv2 MIB, RFC2674 - bridge MIB extension, RFC2925 - Remote Management MIB
- Layer
- Layer 3 Lite
- 10/100/1000 Base-T (RJ45) Ports
- 48
- 1/10G Base-X (SFP+) Ports
- 6
- OOB Management Port (10/100 RJ45)
- 1
- Packet Buffer
- 2 MB
- CPU Speed
- 1 GHz
- RAM
- 1 GB
- Flash Memory
- 32 MB + 128 MB
- Relative humidity
- 10 – 90
- Switching Matrix (Gbps)
- 216
- Power supply
- 230 V AC
- Throughput (Mpps)
- 161
- Jumbo Frames
- 12 K
- Max Power Consumption
- ≤ 840 W
- PoE Support
- IEEE 802.3af (PoE), IEEE 802.3at (PoE+)
- PoE Power Budget
- 740 W
- MAC Address Table
- 32 K
- MAC Multicast Table
- 4 k
- ACL Table
- 3 K
- Routing Table
- 1 K
- ARP Table
- 1 K
- VLAN IP Interfaces
- 1 K
Measurement
- Operating temperature
- 0 – 50
